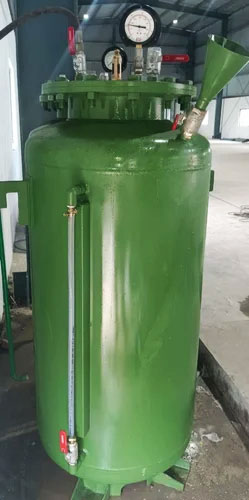

Our 500-litre Pressure Feed Container, also referred to as a Manual Die Coat Tank, is designed for large-scale die casting and industrial spraying operations. With its high-capacity build, it enables continuous and uniform fluid delivery under pressure, significantly reducing refill downtime. Made from robust materials and equipped with advanced safety features, it is ideal for die coat applications and other high-volume coating requirements.
Specification | Details |
---|---|
Capacity | 500 Litres |
Material | Mild Steel / Stainless Steel (Optional) |
Max Design Pressure | 30 Bar |
Material Grade | ASTM A106 |
Tank Type | Manual Die Coat Tank / Pressure Feed Container |
Agitator | Manual or Pneumatic (Optional) |
Mobility | Heavy-duty Castor Wheels |
Pressure Regulation | Fitted with Pressure Regulator and Safety Valve |
Lid | Clamp-locking with Gasket Seal |
Level Indicator | External Fluid Level Gauge |
Air Inlet | Standard Air Connection (1/4" or as required) |
Fluid Outlet | Standard Fluid Connection (1/4" or as required) |
Finish | Powder Coated / Paint Finished for Corrosion Resistance |
Country of Origin | Made in India |
