Cold Chamber Die Casting Machine MT160

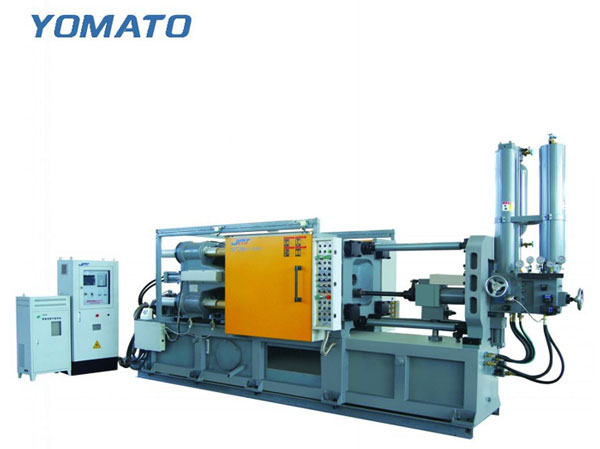

Yomato MT160 Ton Cold Chamber Die Casting Machine:
We offer the Yomato MT160, a robust and high-precision 160-ton cold chamber die casting machine ideal for aluminum, magnesium, and zinc alloy components. With a clamping force of 1600 kN and advanced injection technology, it ensures consistent quality, efficiency, and durability—perfect for small to medium-sized parts in the automotive, electronics, and hardware industries. Reliable, energy-efficient, and backed by our full-service support.
| Specification | Details |
|---|---|
| Locking Force | 1600 kN |
| Platen Size | 680 × 680 mm |
| Space Between Tie Bars | 460 × 460 mm |
| Tie Bar Diameter | 85 mm |
| Die Height | 200 – 550 mm |
| Clamping Stroke | 360 mm |
| Injection Force | 220 kN |
| Injection Stroke | 345 mm |
| Plunger Diameter | φ40 mm |
| Plunger Distance | 40, 50, 60 mm |
| Injection Weight (Al) | 0.7, 1.2, 1.7 kg |
| Casting Pressure | 175, 112, 77 MPa |
| Casting Area | 91, 142, 205 cm² |
| Max Casting Area (40MPa) | 400 cm² |
| Casting Flange Protrusion | 10 ~ 0.05 mm |
| Casting Flange Diameter | φ110 mm |
| Plunger Penetration | 125 mm |
| Ejector Stroke | 80 mm |
| Ejector Force | 14 kN |
| System Working Pressure | 14 MPa |
| Motor Capacity | 11 kW |
| Oil Tank Capacity | 450 L |
| Weight of Machine | 6400 kg |
| Machine Dimensions (L×W×H) | 5.2 × 1.4 × 2.5 m |
