Cold Chamber Die Casting Machine MT200

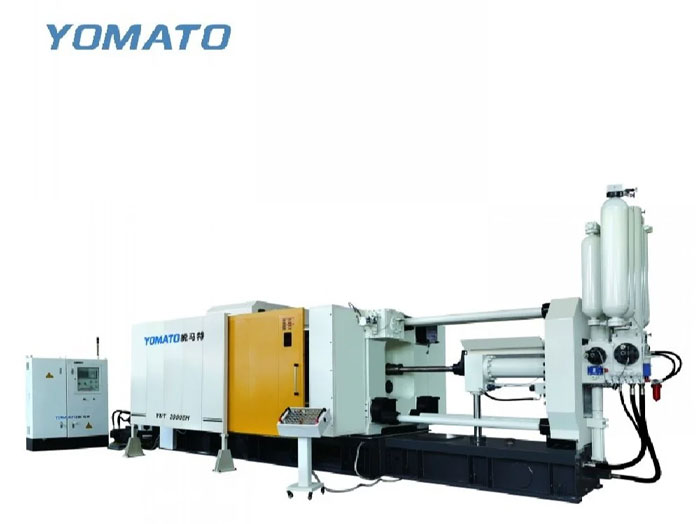

Yomato MT 200 Ton:
The Yomato MT 200 Ton Die Casting Machine delivers precision casting, energy-efficient operation, fast and easy die changes, and dependable PLC-based control—ideal for producing mid-sized aluminium components across automotive, electrical, and industrial sectors with consistent quality and reliability.
| Specification | Details |
|---|---|
| Locking Force | 2000 kN |
| Platen Size | 760 × 740 mm |
| Space Between Tie Bars | 490 × 490 mm |
| Tie Bar Diameter | 85 mm |
| Die Height | 200 – 550 mm |
| Clamping Stroke | 460 mm |
| Injection Force | 230 kN |
| Injection Stroke | 380 mm |
| Plunger Diameter | ⌀50, ⌀60, ⌀70 mm |
| Plunger Distance | 50, 60, 70 mm |
| Injection Weight (Al) | 1.2, 1.8, 2.4 kg |
| Casting Pressure | 142, 99, 72 MPa |
| Casting Area | 140, 202, 319 cm² |
| Max Casting Area (40MPa) | 500 cm² |
| Casting Flange Protrusion | 10 ± 0.05 mm |
| Casting Flange Diameter | ⌀110 mm |
| Plunger Penetration | 125 mm |
| Ejector Stroke | 90 mm |
| Ejector Force | 80 kN |
| System Working Pressure | 14 MPa |
| Motor Capacity | 15 kW |
| Oil Tank Capacity | 650 L |
| Weight of Machine | 7200 kg |
| Machine Dimensions (L×W×H) | 5.6 × 1.7 × 2.6 m |
